Complete Urine Separator for Composting Toilet
Urine separation is the single most important factor in any composting toilet and an integral part of all our eco-toilet systems.
Which is right for me?
This is our newer all-in-one design — a complete unit with a removable metal filter that stops pipe blockages. For the lighter, DIY-friendly original at £31, see the Urine Separator.

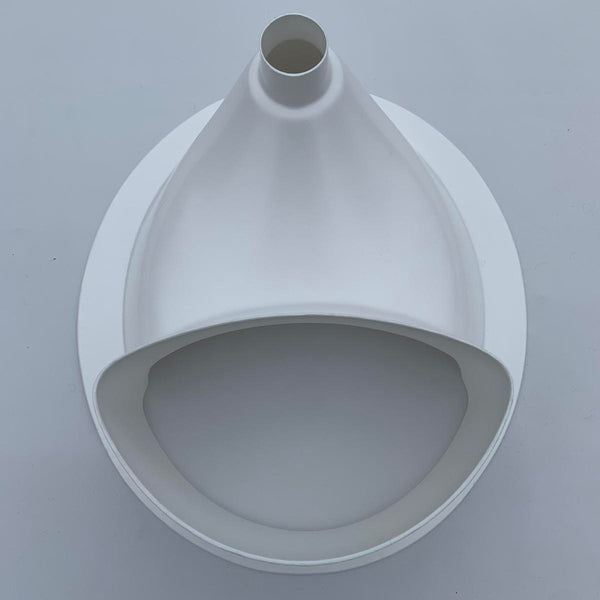

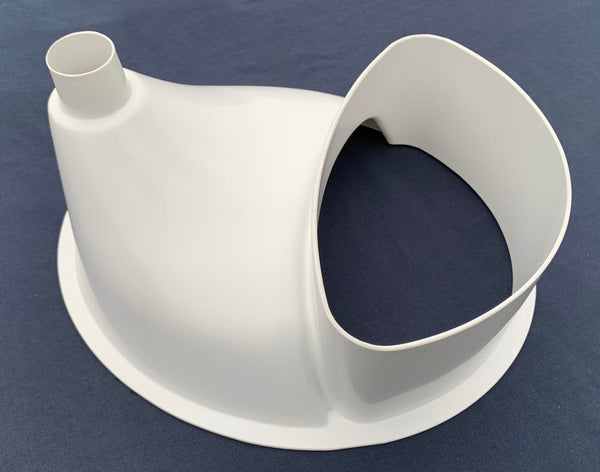

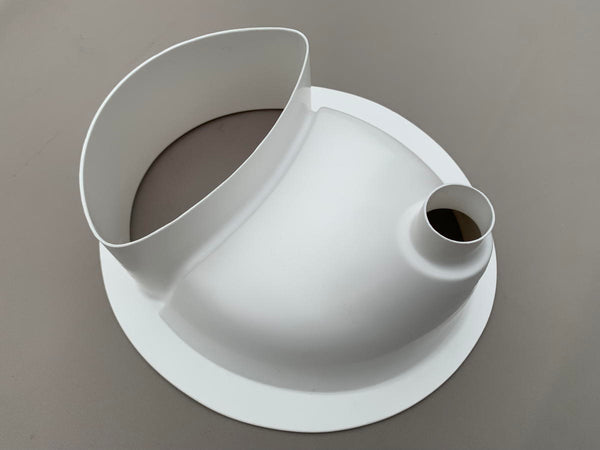

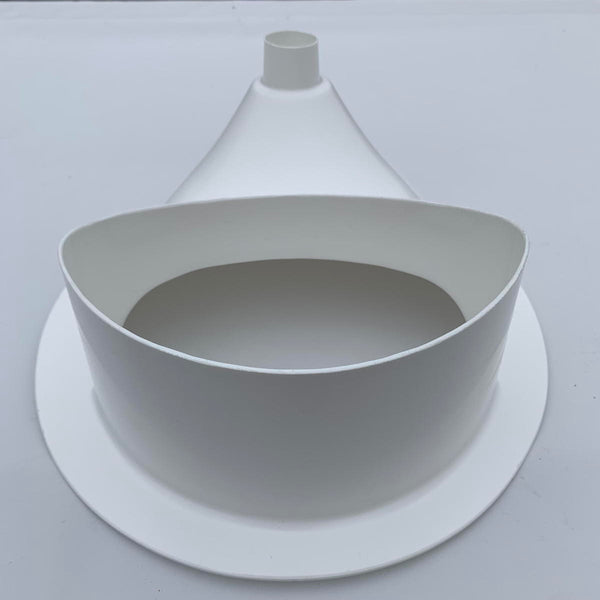

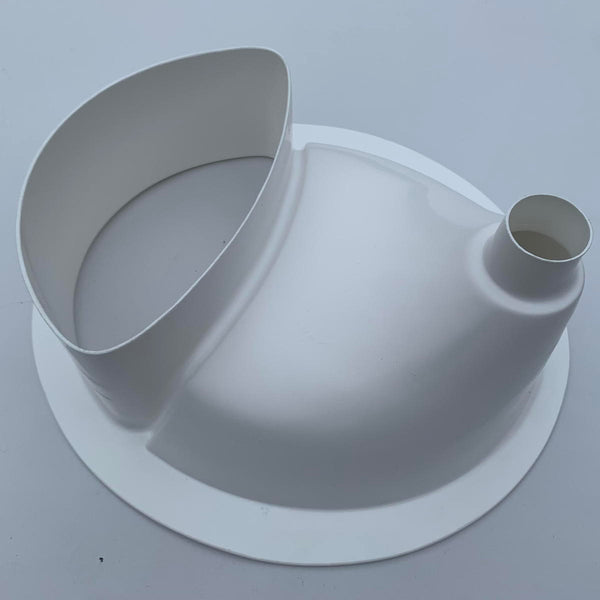

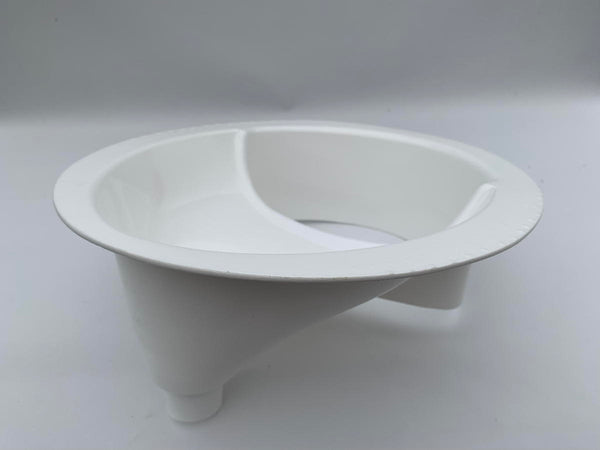

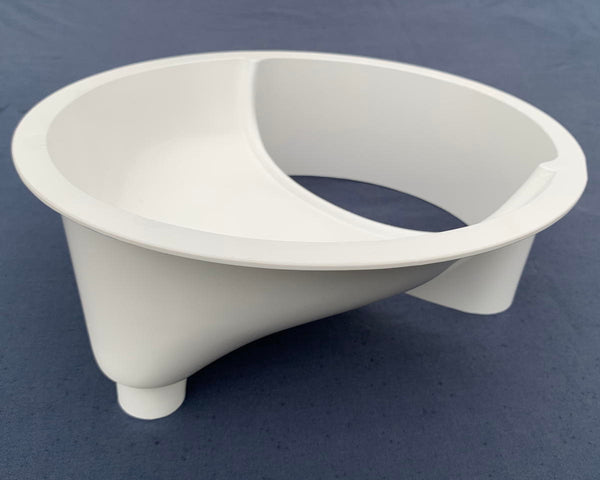

We've been designing and making urine separators since 2009, and this complete plastic urine separator is the latest of our designs. Developed in response to customer demand, it functions the same way as our original separator — diverting urine away from solids at source — but comes as a complete unit that sits neatly underneath your toilet seat.
Our separators keep your compost toilet odour-free and ensure straightforward, hassle-free toilet maintenance.

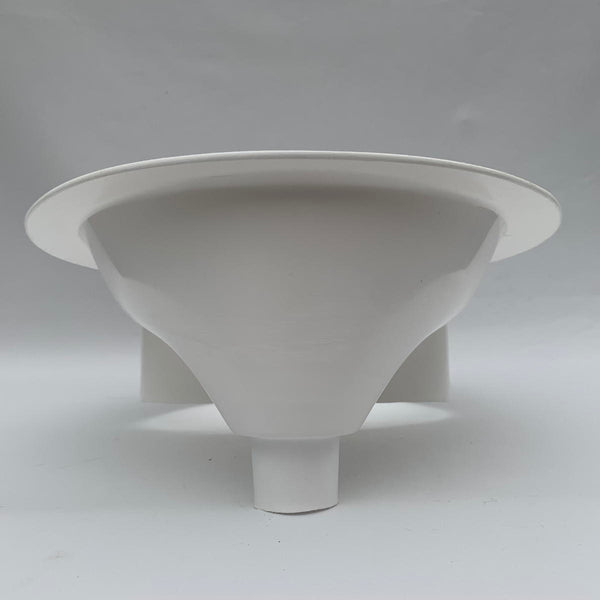

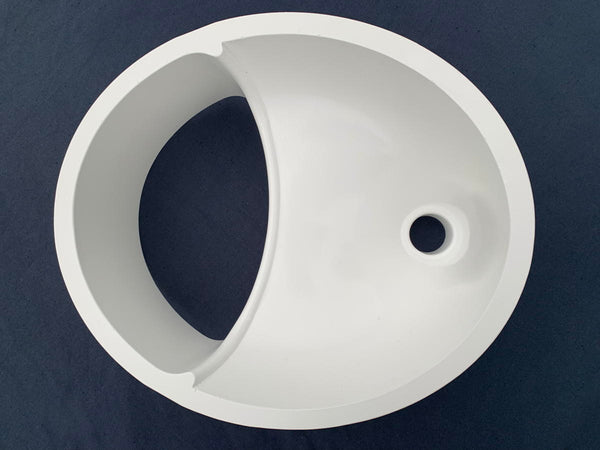

Strong and sturdy with an easy-to-clean shiny surface, this separator is attached with screws to the bottom of the compost toilet seat platform, where it can be cleaned in situ or easily removed for periodic deep cleaning.

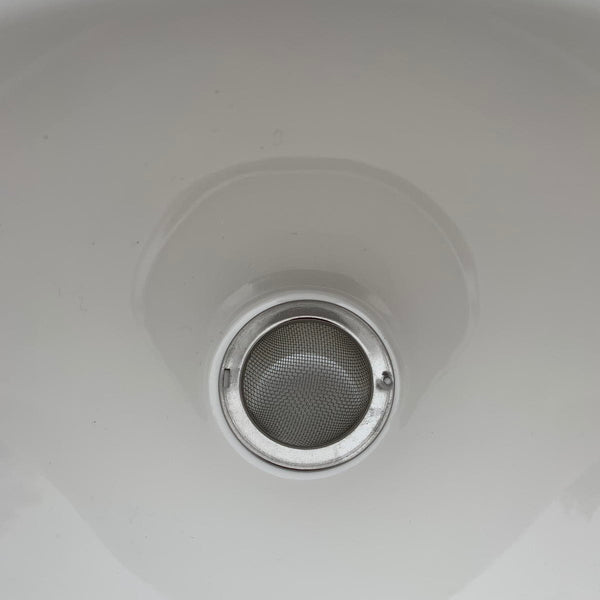

Each separator is supplied with a removable metal filter that sits over the outlet hole, preventing the pipework from becoming blocked.
Dimensions
- Length: 330mm
- Width: 284mm
- Depth: 130mm

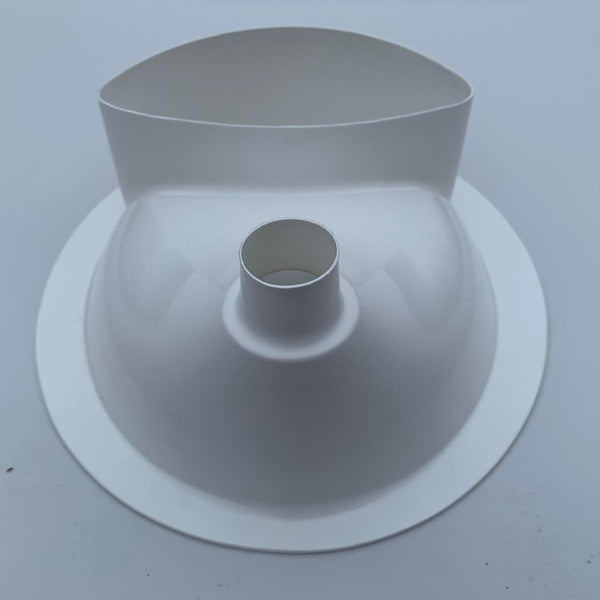

- Hole size: 30mm (external diameter)
Installation
The urine separator is placed under the toilet seat with screws and can be connected to a standard 1¼" push-fit waste pipe.
